Designed for double door applications this slim line magnet has an electro-less nickel plated armature and aluminium housing and is available monitored or unmonitored. It has a holding force up to 600lbs (272kg) per door and the input voltage is switchable between 12V DC or 24 V DC.

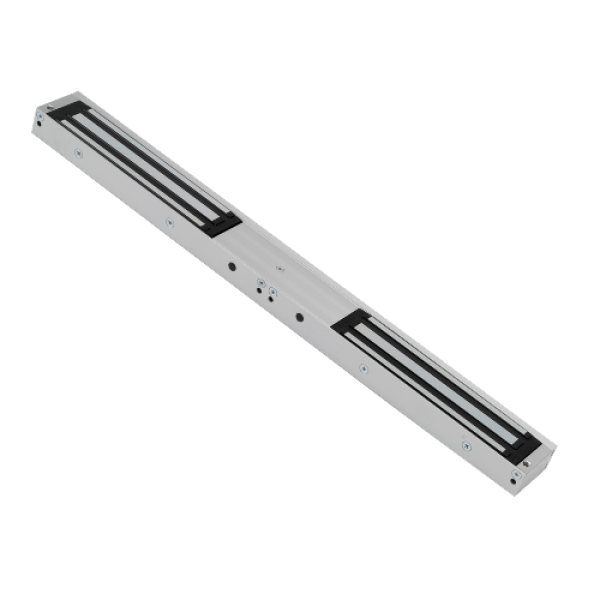

ASEC Slim Line Double Magnet 12/24VDC Unmonitored
Features
- Holding force up to 600lbs (272kg) per door
- Operating voltage 12/24Vdc (Selectable)
- Electro-less nickel plated armature
- Aluminium housing
- LED Status (Red/Green) - Monitored version
- Monitored version - Magnetic bond sensor monitor output remotely monitors the door lock or unlock status (N.C output - door opened; N.O output - door closed. (SPDT rated 0.25a at 12Vdc)
Categories
- Access Control
- Electric Locking
- Magnet
- Asec
- Slim Line
Our ASEC Slim Line Double Magnet from Asec is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Specifications | |
---|---|
Depth | 26mm |
Width | 50cm |
Input Voltage | 12/24V DC |
Length | 42mm |
Monitored | No |
Pack Quantity | 1 |
* Information above is accurate at the time of entry and may be subject to change at any time. |
ASEC Slim Line Double Magnet 12/24VDC Unmonitored
- Manufacturer: Asec
- Product Code: AS12259
-
£100.65
- Availability: 4 In Stock
