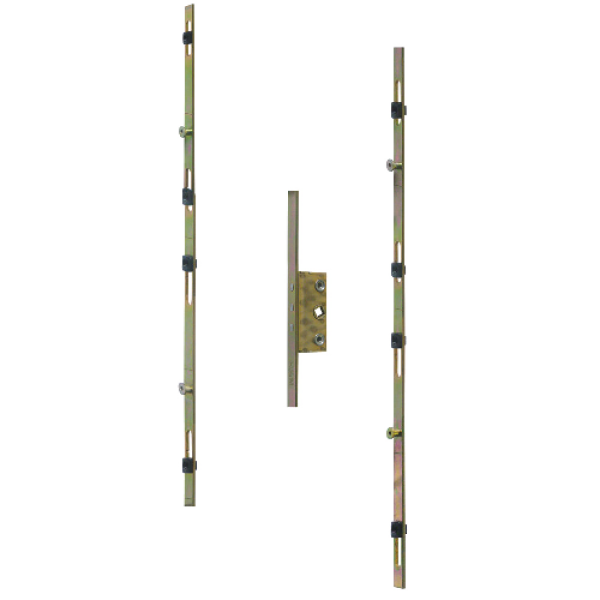

This espag rod is extremely versatile, it is supplied as a 13mm wide inline 1 metre strip with 4 mushrooms however each side can be cropped up to 4 times in 10cm increments. The centre case has an 8mm follower, 2 threaded holes and slides 20mm to the side which rotates the follower from square to diamond. The screw holes have plastic inserts which not only allow for tolerances when installing but act as pivot points to allow the locking mechanism to operate.
CHAMELEON Adaptable Window Espag Rod - 13mm Faceplate 25mm Backset
Features
- Mechanism is 1 metre long and 13mm wide
- Can be cropped on either side in 10cm increments
- Centre case can slide 20mm & rotates the follower 45º
- Screw fixings have inserts which act as pivot points
- 4 mushroom locking points
- Threaded holes in centre case
Categories
- Multi Point Locks
- Window
- Espagnolette
- Full Mechanism
Our CHAMELEON Adaptable Window Espag Rod - 13mm Faceplate from Chameleon is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Specifications | |
---|---|
Backset | 25mm |
Faceplate Width | 13mm |
Length | 1m |
Locking Point Mushroom | 4 |
Spindle | 7mm |
* Information above is accurate at the time of entry and may be subject to change at any time. |
CHAMELEON Adaptable Window Espag Rod - 13mm Faceplate 25mm Backset
- Manufacturer: Chameleon
- Product Code: CH10471
-
£9.78
- Availability: 17 In Stock
