The RGL 1ACCESS‑12 is a 12 V DC, 3 A power supply unit specifically designed for access control and security installations. Engineered with switch-mode technology, it features an adjustable output between 12 V and 14 V DC, enabling compatibility with a wide range of access control boards or third-party devices. The unit supports additional battery charging and provides deep-discharge protection, current limiting and short-circuit protection, ensuring a reliable and safe power feed for critical security systems.

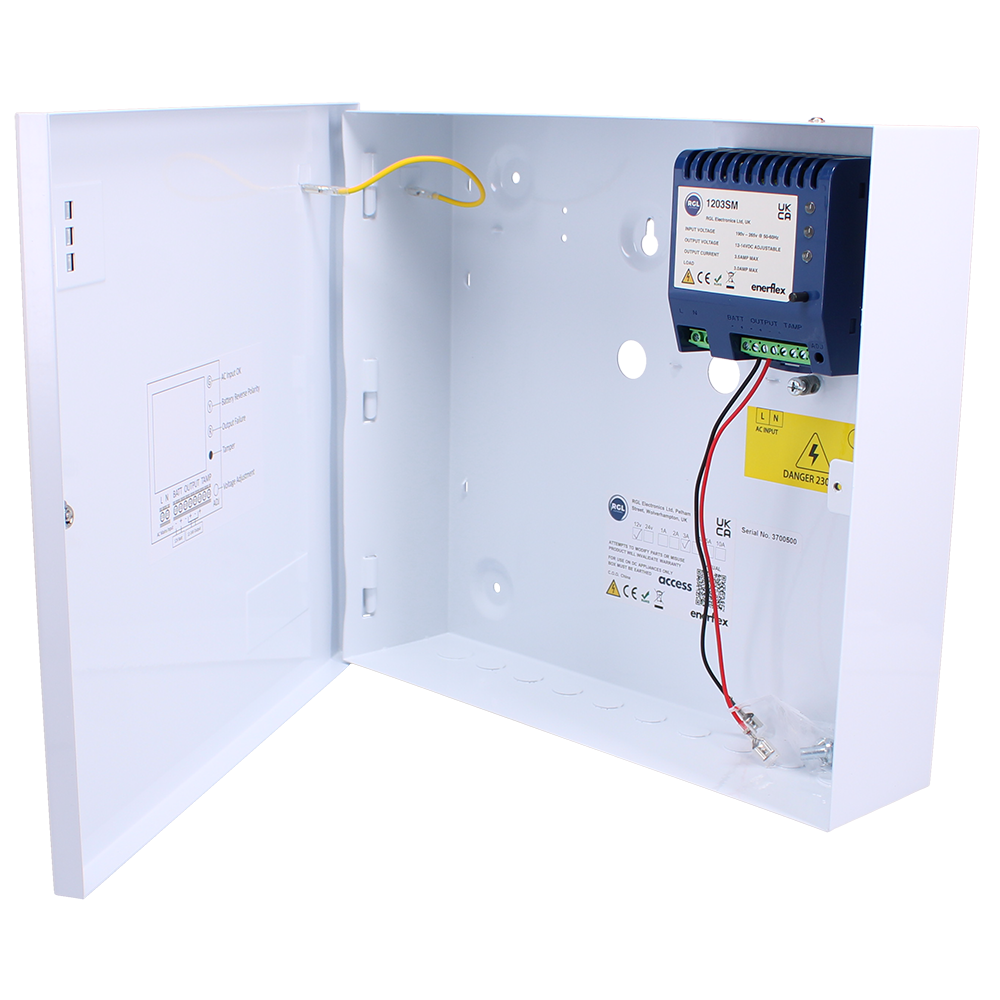

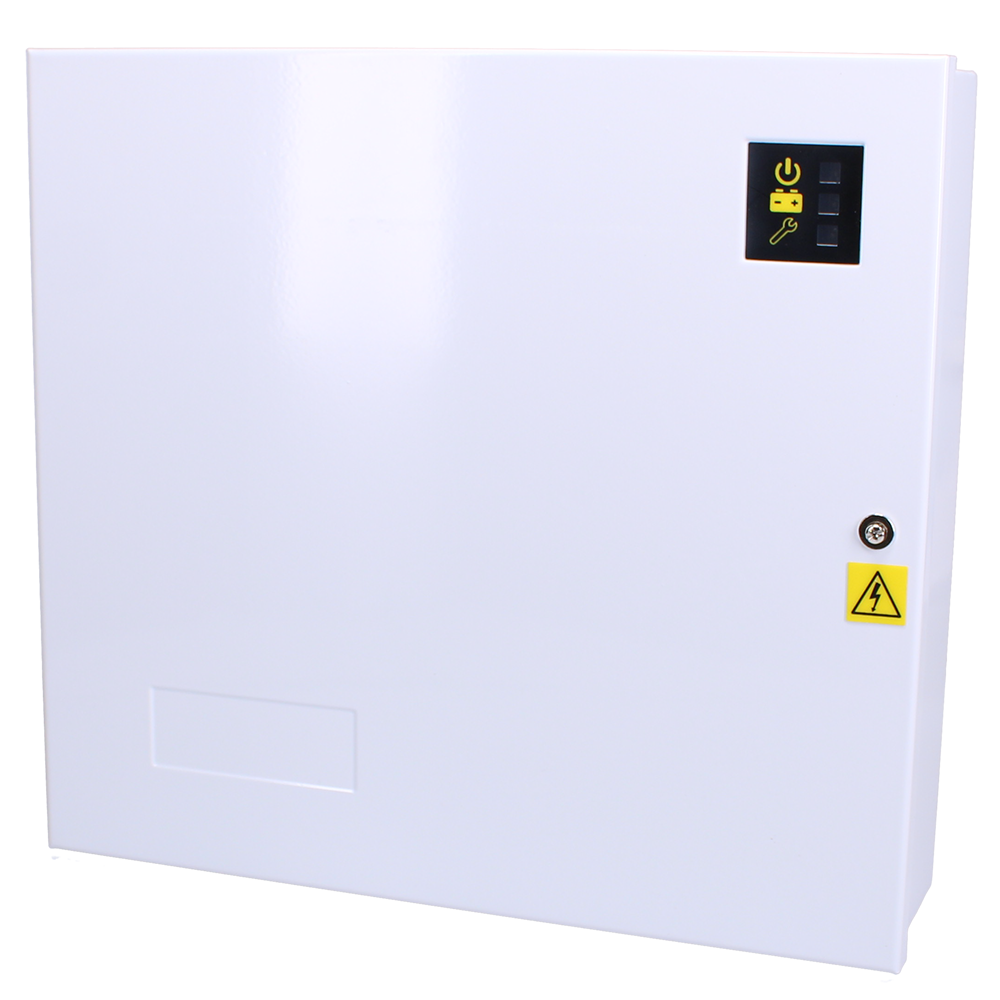

Housed in a mild-steel, white powder-coated enclosure with DIN-rail mounting capability, this PSU offers practical installation features including multiple cable entries, LED indicators for mains, battery and output status, tamper protection and a fused 230 V mains input. It boasts up to 92% energy efficiency, helping to reduce running costs and heat generation, and comes supplied with 4 x magnetic standoffs for universal positioning of control boards.

RGL Power Supply Unit (PSU) 3 Amp 12VDC Boxed PSU 1ACCESS-12 - White (L37484)

Features

• Designed to fit 1 x Access Control Module (Not included)

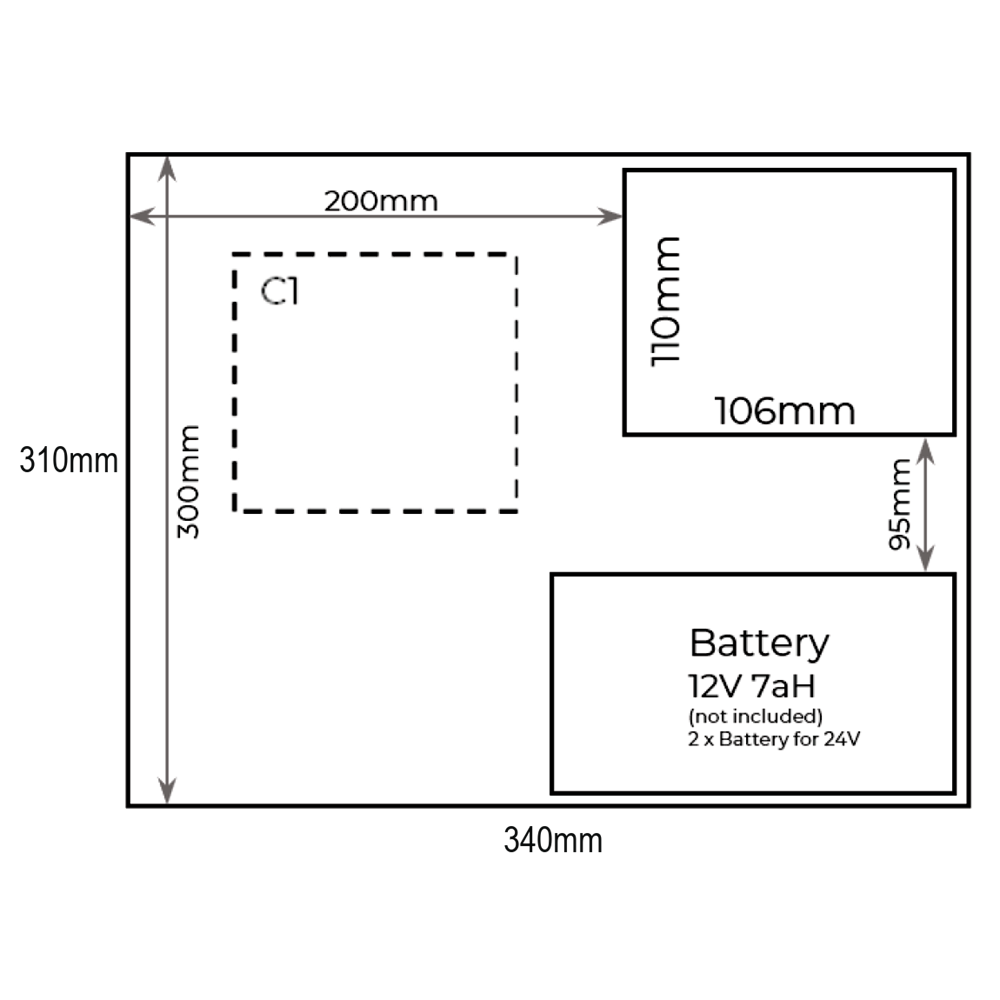

• 310mm (H) x 340mm (W) x 80mm (D)
• 12-14VDC adjustable voltage output
• 230V fused input
• Mains transient protection
• Din rail mountable PSU

Categories

• Access Control
• Accessory
• Power Supply
• RGL

Our RGL Power Supply Unit (PSU) 3 Amp 12VDC Boxed from RGL is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.
