The Union CE26V is a versatile and high-performance overhead door closer, designed for medium to heavy-duty commercial and public doors. Engineered to meet EN 1154 standards, it features an adjustable power size from 2 to 6, allowing it to accommodate a wide range of door widths and weights. Key features include a rack and pinion mechanism for smooth and controlled closing, adjustable closing and latching speeds, and a built-in backcheck function to protect against excessive opening force.
Tested for 500,000 cycles and fire-rated to EN 1634 standards, this versatile closer can be installed in standard, parallel arm, or transom-mounted configurations, offering flexibility for different door setups.

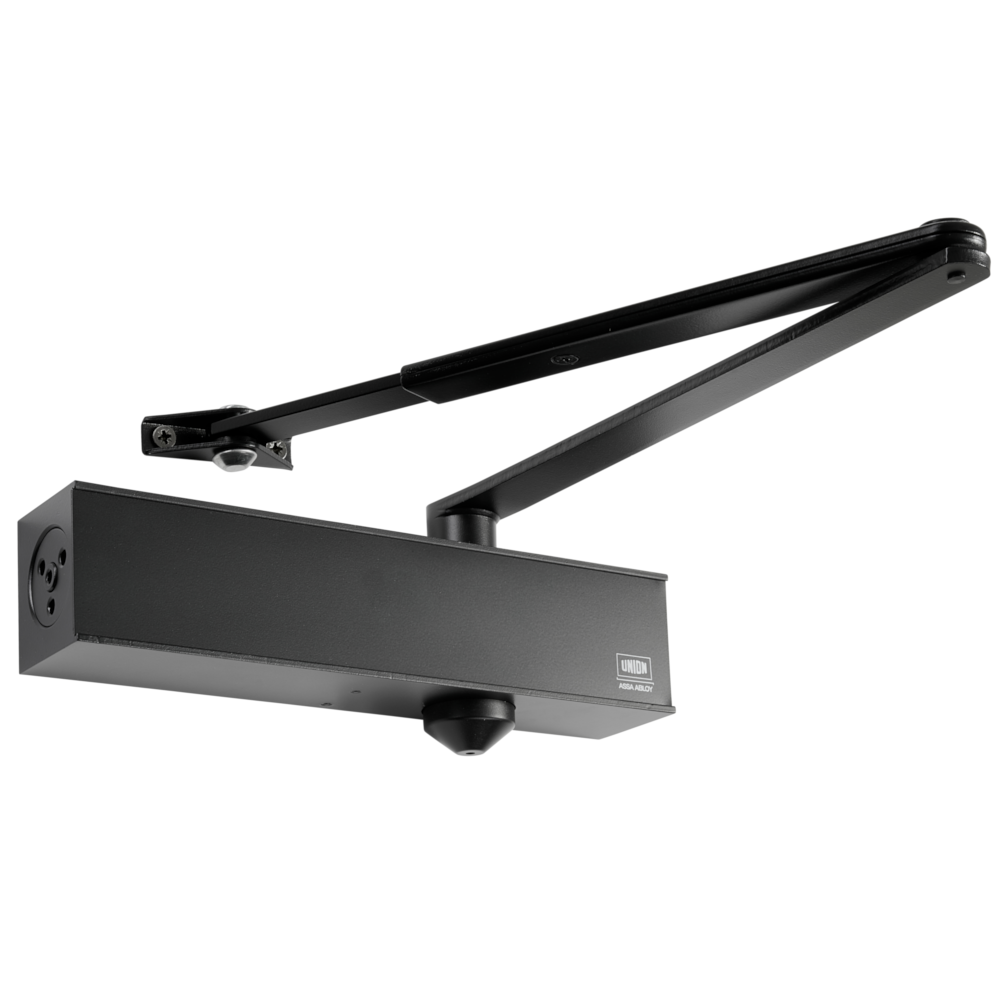

UNION CE26V Size 2-6 Overhead Door Closer Black Matt (L36908)
Features
- Adjustable backset, closing and latching speed
- Suitable for fig 1, fig 61 or fig 66 installation
- Rack & pinion closer
- Power size EN 2-6
- Certifire tested to FD120 for timber doors
- Suitable for doors up to 1400mm wide and 120Kg in weight
Categories
- Architectural Hardware
- Door Closer
- Overhead
Our UNION CE26V Size 2-6 Overhead Door Closer from Union is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Specifications | |
|---|---|
| Backcheck | Yes |
| Body Height | 62mm |
| Body Width | 283mm |
| Finish | Silver |
| Handed | Reversible |
| Hold Open | No |
| Max Door Weight | 120Kg |
| Max Door Width | 1400mm |
| Mechanism | Rack & Pinion |
| Pack Quantity | 1 |
| Standards | CE Marked,BS EN 1154 |
| Strength Size | 2 To 6 |
| Adjustable Closing Speed | Yes |
| Adjustable Latch Action | Yes |
| Product Code | L36908 |
| Group Code | UNION_0380 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
UNION CE26V Size 2-6 Overhead Door Closer Black Matt
- Manufacturer: Union
- Product Code: L36908
-
£119.07
- Availability: 2 In Stock
