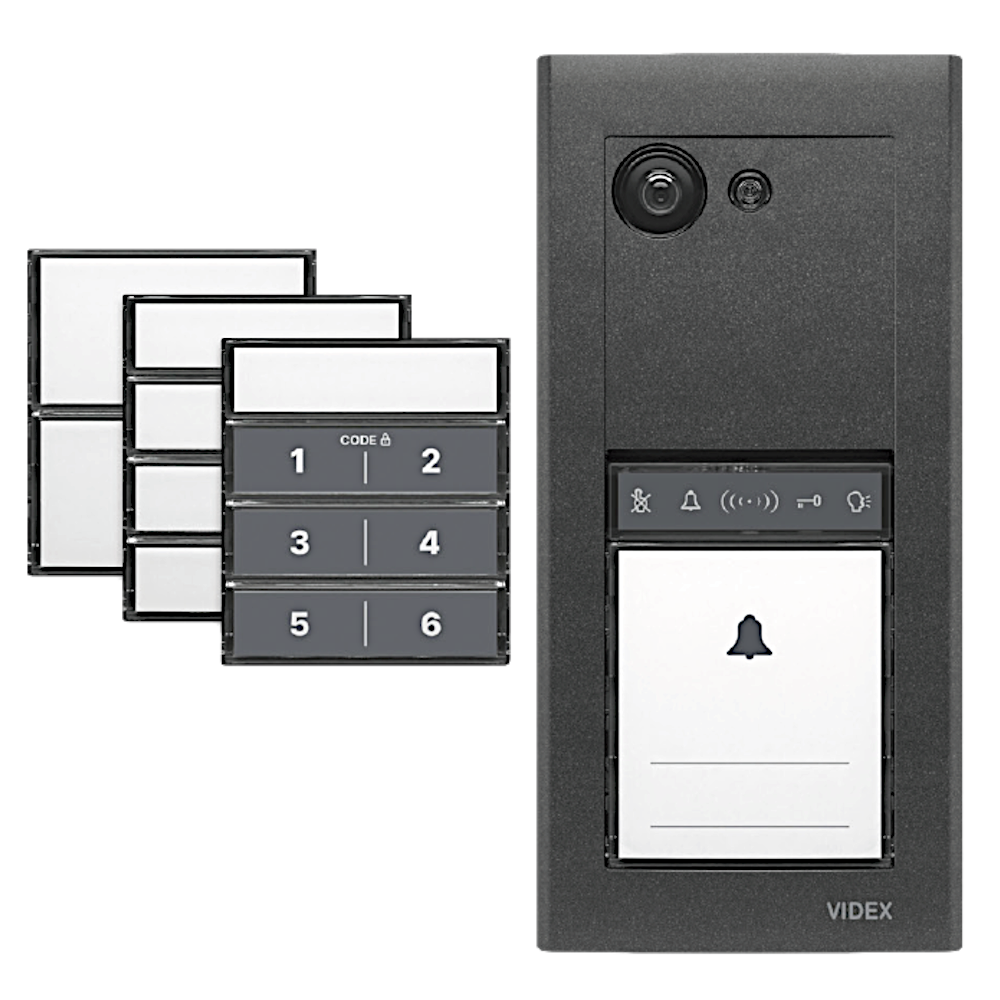

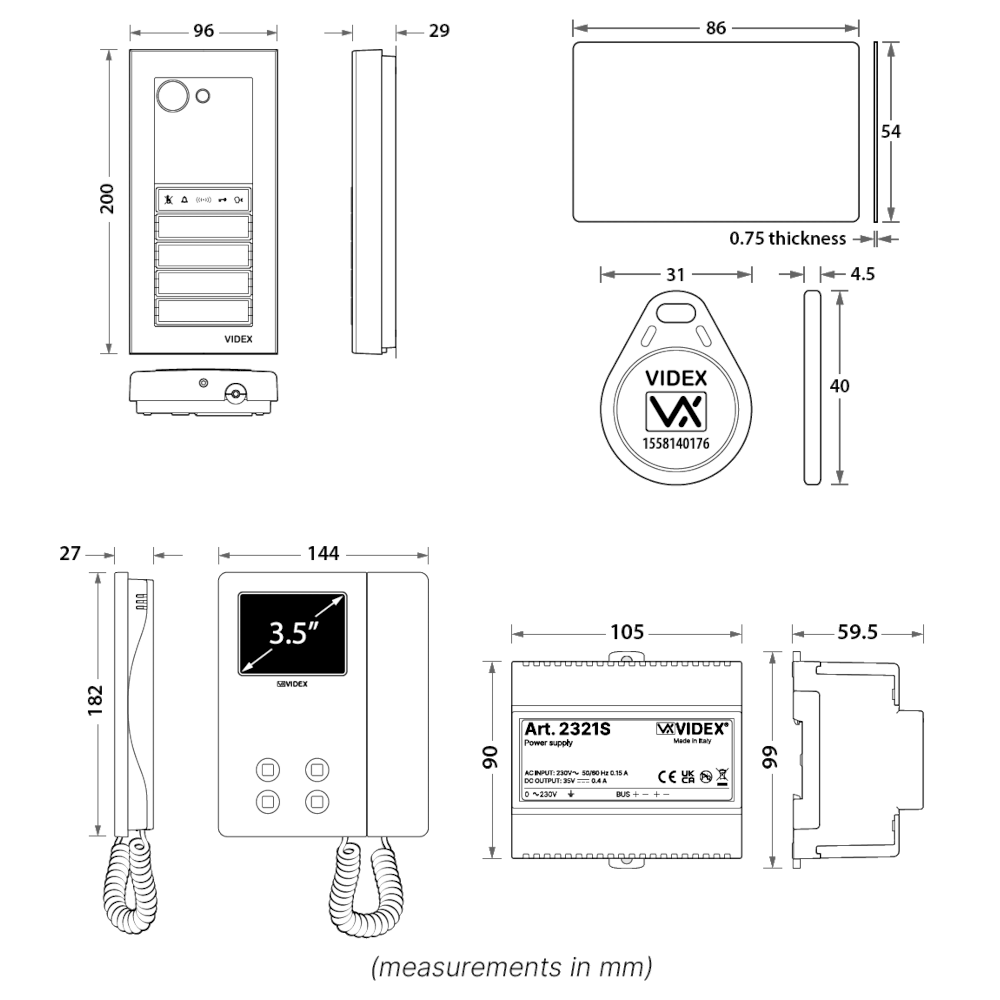

The Videx ERA23V is a stylish and compact surface-mounted video entry panel engineered for both residential and commercial settings. With a slim profile measuring just 96 mm in width, its designed to seamlessly fit onto a standard 100 mm post. The die-cast aluminium casing delivers robust durability, IK09 impact resistance and IP65 environmental protection.

Built on the widely utilised VX2300 2-wire bus system, the ERA23V offers simplified installation without compromising functionality. It supports configurable setups—including one, two, or four call buttons, or a single call button paired with a coded keypad, which provides ultimate adaptability for diverse property layouts.

Equipped with a wide-angle CMOS camera, the ERA23V ensures clear video capture even in low-light conditions. Voice prompts, multi-coloured lighting, and additional I/O interfaces—such as lock and gate control—enhance both usability and operational versatility.

An integrated Mifare/NFC proximity reader developed to a very high security standard allows the user to use the unique Videx virtual fob app on a smartphone to open door locks and gates - totally free of charge. The app is available to download from Google Play and coming soon to the App Store.

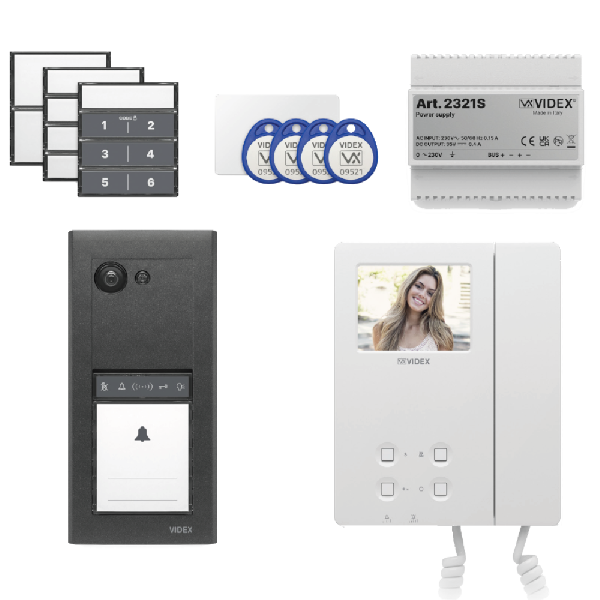

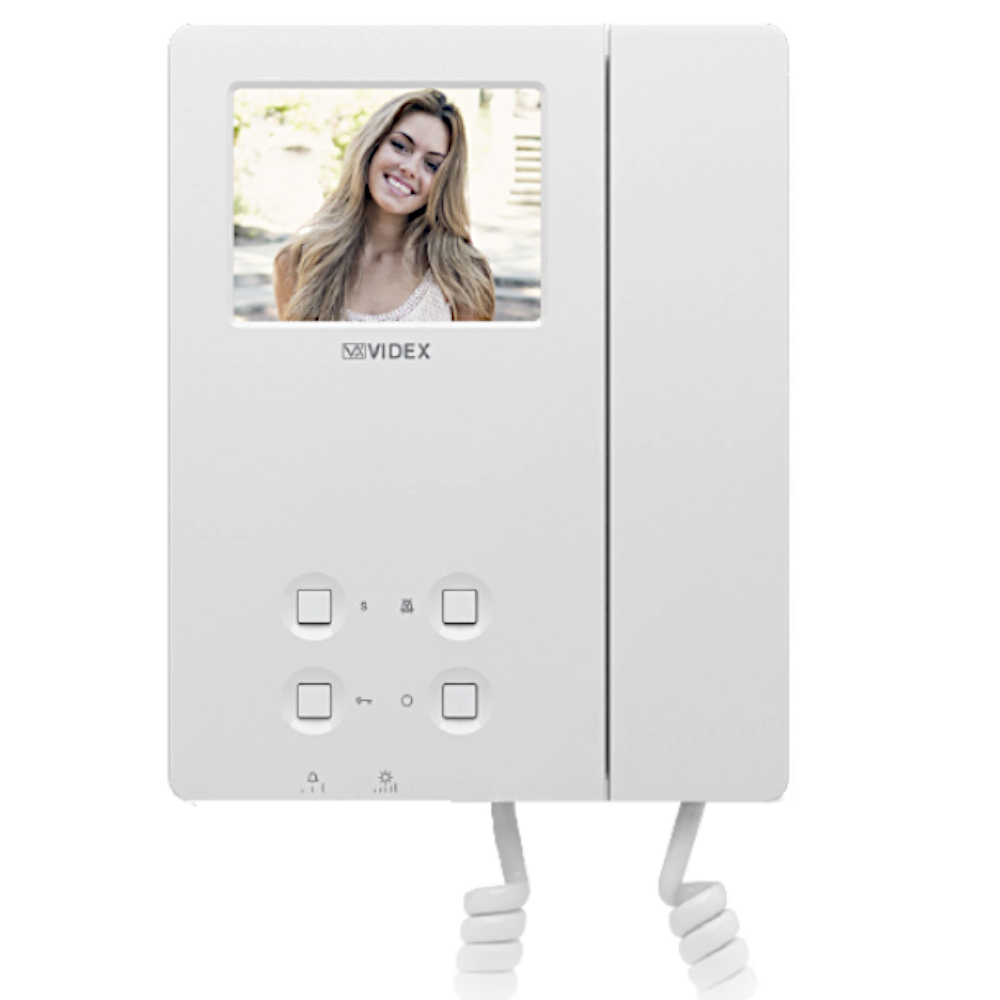

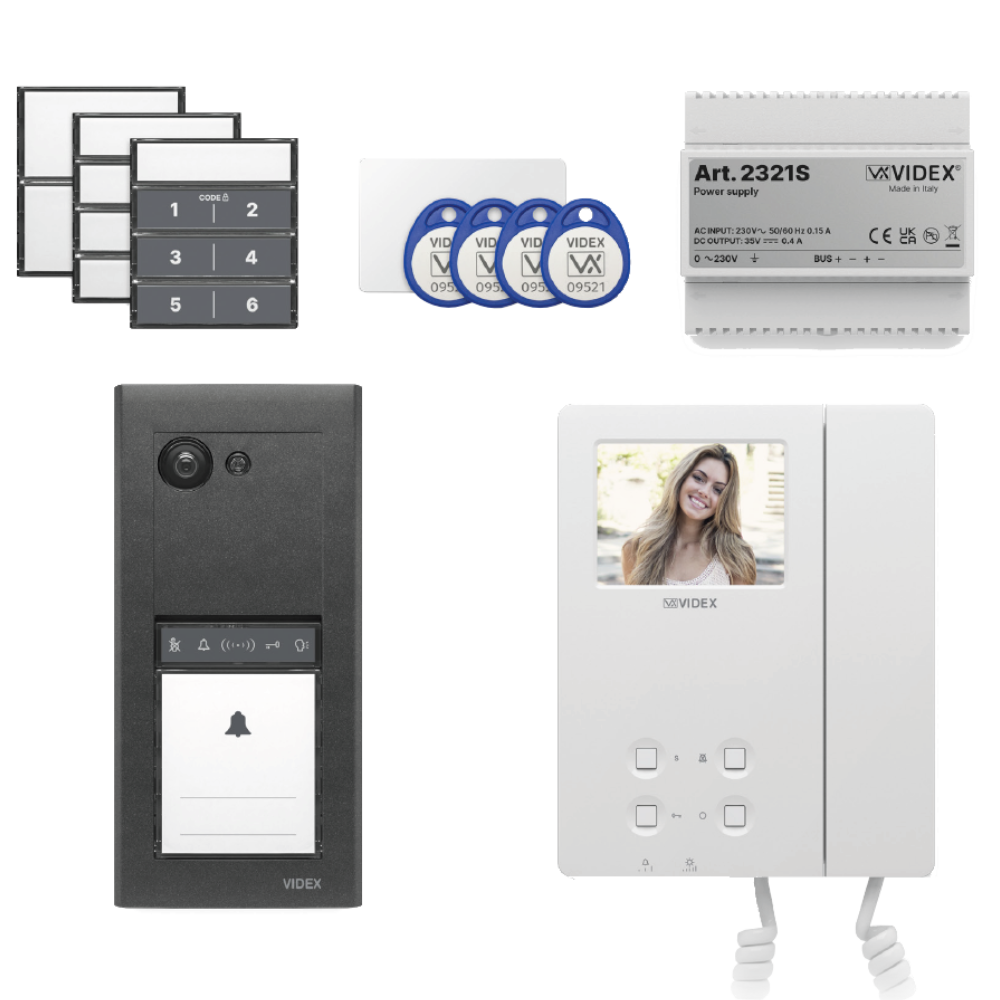

This ERAKIT23B6286 kit includes the ERA23V entry panel with configurable button options, a surface mount videophone (6286) with 3.5" full colour LCD screen, a 2 wire bus power supply (2321S) and five proximity tokens - 1 card and 4 fobs that support Mifare/NFC. Designed to integrate seamlessly with the VX2300 family, the ERA23V scales effortlessly and supports expansion with additional panels or accessories as needed.

VIDEX ERA23VB Series Entry Panel Video Kit With 3.5 Inch Video Phone(6286) PSU (2321S) & Proximity Card Fobs (955MF) ERAKIT23B6286 Gun Metal Grey ERAKIT23B6286 (L37214)

Features

• Expandable VX2300 2 wire BUS system solution
• Can be configured with either 1,2 or 4 call buttons or 1 button Plus coded access
• CMOS hi-resolution camera
• Proximity reader, NFC & Bluetooth for up to 2000 users
• Voice assistance
• 1 push to exit input & 2 relay outputs

Categories

• Access Control
• Audio & Video Door Entry
• Videx Video
• Kit
